Recording an ECG

To record your ECG, perform the following steps:

1. Make sure ScanWatch 2 is snug on the wrist you selected in the Withings App.
2. Press the side button of the watch and scroll to the ECG mode. Press the button to select the ECG mode.


3. Place your fingers on the bezel (top ring) for 30 seconds. Stay still, don’t move or talk, and relax.
   Important: Try not to pinch or grip the watch too hard.


   The ECG recording starts after a first vibration. Please remain still during the measurement process. It is better to be seated or to place your arm on your leg, and try not to contract your arm and hand muscles. ScanWatch 2 vibrates twice when the ECG recording is completed.

   Important: When recording your ECG, the watch will give you 3 attempts to take a measurement. If the ECG recording fails on the third attempt, the watch will vibrate twice. If you wish to attempt a new ECG recording, you will have to short press the side button on the watch to start again.

4. Tap Done.
   Note: You have the possibility to share your ECG with your doctor. To do so, tap Share this measurement as a PDF. Click here for more information.

Metrics received from an ECG measurement

After each measurement, ScanWatch 2 will give you the following metrics:

• Heart rate
• A Lead D1 ECG tracing
• A rhythm prediction between the following classes:
  - Low Heart Rate (heart rate < 50 bpm)
  - High Heart Rate (heart rate > 150 bpm)
  - Sinus Rhythm (heart rate between 50-99 bpm)
  - High Heart Rate (No signs of AFib) (heart rate between 100-150 bpm)
  - Atrial Fibrillation (heart rate between 50-99 bpm)
  - Atrial Fibrillation - High Heart Rate (heart rate between 100-150 bpm)
  - Inconclusive
  - Poor Recording



Learn more about the details of your ECG results in our dedicated articles:

• US users
• EU and Rest of World users

Notes:

• You can see your ECG signal in real-time in the Withings App.

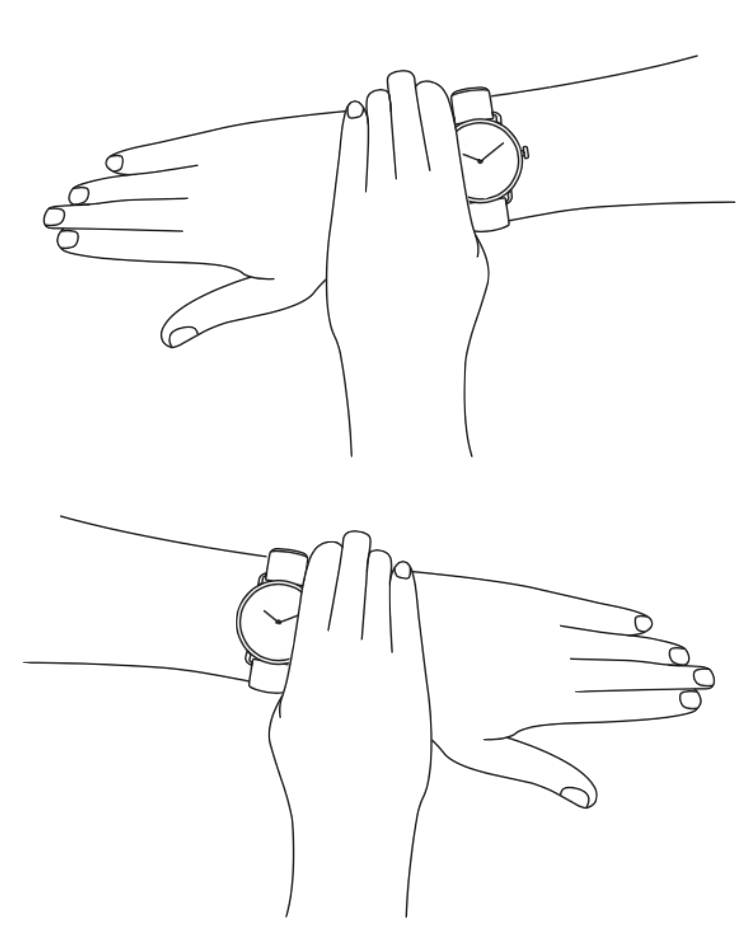

• If you don't have your phone with you, you can still record an ECG on the go via a simple gesture on the watch. Your results will appear on the watch's display and in the Home screen of the Withings App the next time you open it.
• ECG recordings are now available on Withings Web App.

If you're having issues recording your ECG, click here.
