Preparing for a Measurement
Make sure you follow these guidelines before taking a measurement:
- Ensure you are seated with elbows on the table and your feet flat on the floor.
- Don't speak or move during recording (especially your finger).
- Ensure your finger is clean but not overly dry. If you are unsure, we recommend you wash and dry your hands just before taking your measurement.
- Ensure your hands and fingers are not too cold. If so, warm them by rubbing them together before taking your measurement.
- Ensure your finger is not scarred or calloused at the point of contact.
- Wait at least 10 minutes after waking up or working out before taking your measurement.
- Ensure you and the BeamO are in the same ambient temperature for 10 minutes before taking your measurement.
- Ensure you are at least 1.5 feet from any power outlets or large electronic devices (such as computers, tvs, etc).
- Should only be used on adults age 18 (EU) or 21 (US) or older.
How to take a measurement
To take a measurement, follow these steps:
- Turn on the device by pressing the button.
- Choose your user profile.
- Navigate to the SpO2 Icon:

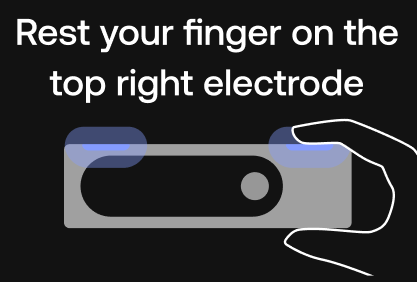

- Rest your forefinger over the sensor on the right electrode as indicated:
Note: Make sure the pad of your finger is covering the entire SpO2 sensor, blocking any light emitted from the sensor. - The measurement will start automatically and last for 15 seconds.
- Adjust the pressure of your right finger to stay in the middle green zone of the colored gauge on the right side of the screen for the duration of the measurement.
Note: Too much or too little pressure can result in premature measurement failure.
