Disclaimer: Due to health regulations and clearances, some BPM Vision features may not be available or may not have clinical validation in your region.

Preparing for an ECG Recording

Make sure you follow these guidelines before taking a recording:

• Ensure you are seated with elbows on the table and your feet flat on the floor.
• Don't speak or move during recording (especially your fingers).
• Ensure your fingers are clean but not overly dry. If you are unsure, we recommend you wash and gently dry your hands just before taking your recording.
• Ensure your hands and fingers are not too cold. If so, warm them by rubbing them together before taking your recording.
• Ensure your fingers are not scarred or calloused at the point of contact.
• Wait at least 10 minutes after waking up or working out before taking your recording.
• Ensure you and the BPM Vision are in the same ambient temperature for 10 minutes before taking your recording.
• Ensure you are at least 1.5 feet from any power outlets or large electronic devices (such as computers, tvs, etc).
• Should only be used on adults age 18 (EU) or 21 (US) or older.

How to take an ECG Recording

To take an ECG Recording, follow these steps:

1. Turn on the device by pressing the On/Off button.
2. Choose your user profile.
3. Navigate to the ECG Icon.

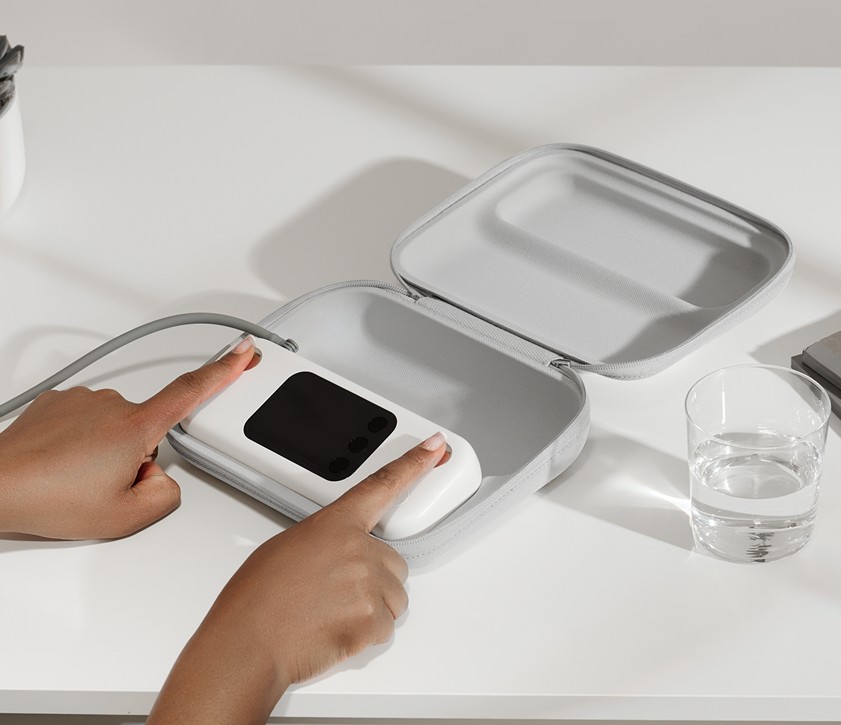

4. Rest your forefinger over the two sensor electrodes, as shown here:

5. The recording will start automatically and last for 30 seconds.
6. Too much or too little pressure on the electrodes can result in premature recording failure.
   Note: Finger pressure must remain steady for the duration of the recording.
