Note: If you do not have a suction cup tool for opening U-Scan, please follow the instructions using your hands, preferably with the gloves packaged with U-Scan or rubber gloves to aid in gripping the device.

Opening and closing the U-Scan properly is very important. If the U-Scan's waterproof seal is not fully closed, U-Scan could become vulnerable to internal water/humidity damage.

The U-Scan will come with a suction cup tool that will aid in gripping the smooth surface of the U-Scan's cover to allow effective opening and closing.

Important: Please make sure that your hands, as well as the surface of U-Scan, are clean and dry before opening and closing the device. This improves the grip required to open and close U-Scan.

Opening U-Scan

1. Position the suction cup on the center of the U-Scan's cover and hold the U-Scan in one hand and the suction cup handle in the other.

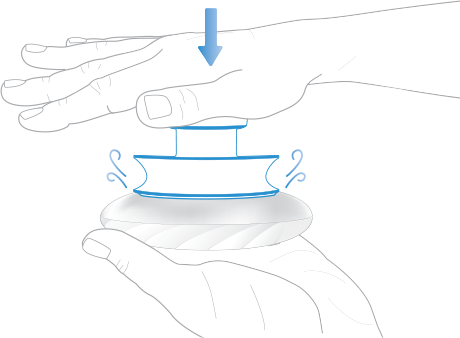

2. Press down firmly on the suction cup to create a seal between the suction cup and cover.

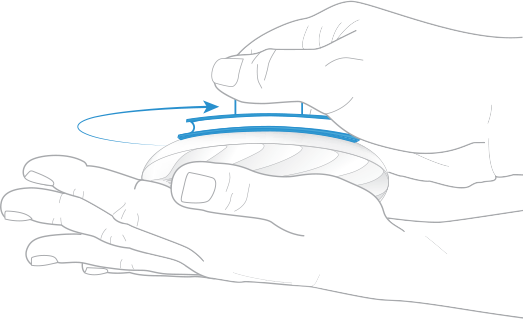

3. Twist the suction cup handle counterclockwise along with the cover to open the U-Scan.



Closing U-Scan

1. Position the suction cup on the center of the U-Scan's cover and hold the U-Scan in one hand and the suction cup handle in the other.



2. Press down firmly on the suction cup to create a seal between the suction cup and cover.



3. Twist the suction cup handle clockwise along with the cover to close the U-Scan.

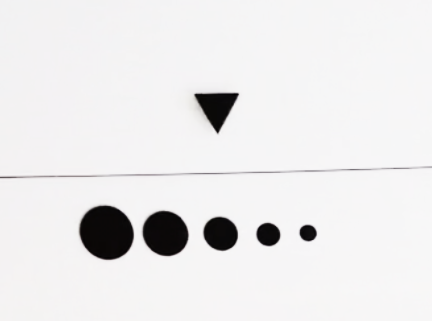

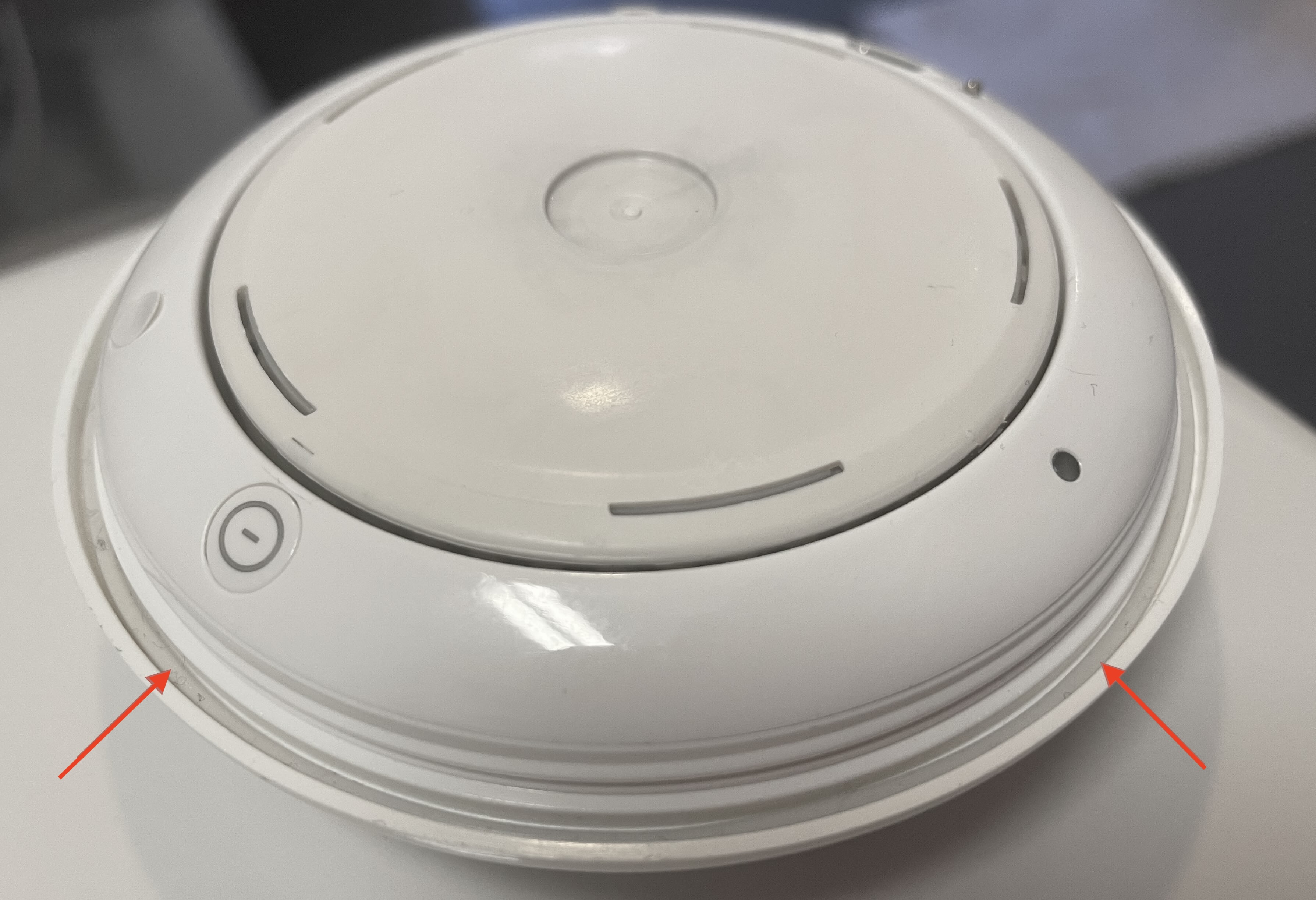

4. Make sure that the arrow along the seam aligns with one of the dots to ensure the watertight seal is fully closed.
