Preparing for a Measurement

Make sure you follow these guidelines before taking a measurement:

• Ensure you are seated with elbows on the table and your feet flat on the floor.
• Don't speak or move during recording (especially your finger).
• Ensure your finger is clean but not overly dry.
• Ensure your finger is not scarred or calloused at the point of contact.
  Note: You can use any finger for the measurement so long as it covers the sensor completely.
• Wait at least 10 minutes after waking up or working out before taking your measurement.
• Ensure you and the BeamO are in the same ambient temperature for 10 minutes before taking your measurement.
• Ensure you are at least 1.5 feet from any power outlets or large electronic devices (such as computers, tvs, etc).
• Do not take a measurement on a premature baby.

How to take a measurement

To take a measurement, follow these steps:

1. Turn on the device by pressing the button.
2. Choose your user profile.
3. Navigate to the SpO2 Icon:

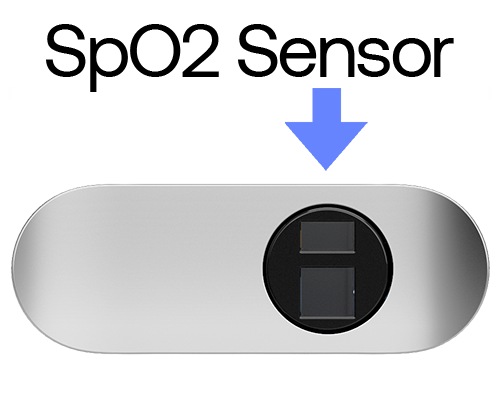

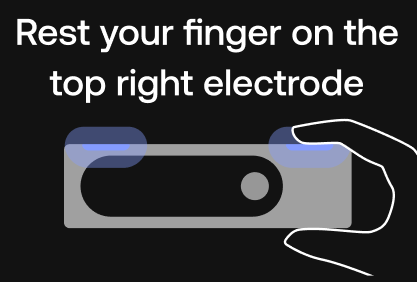

4. Rest the pad of your forefinger over the sensor on the right electrode as indicated:

   Note: Make sure the pad of your finger is covering the entire SpO2 sensor.
5. The measurement will start automatically and last for 30 seconds.
6. Ensure the pressure indicator on the left of the display remains in the green section for the duration of the measurement.
   Note: Too much or too little pressure can result in premature measurement failure.
